Using Compact Mode Display
The Compact Mode offers an alternate view for the Digital Meter and Analog Meter views only. This view gives a small, simplified view of one measurement at a time and is suitable for viewing on small computer monitors.
Instructions
- In order to use the Compact Mode, open the Power Meter application in a new window that is separate from the main BenchVue desktop by clicking
located in the upper right corner of the Power Meter application window.
- From the Digital Meter or Analog Meter view, click

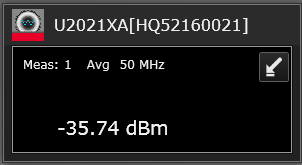

on the tools palette on the right side of the current view to switch to the Compact Mode (see example below).

- To return to the full-size display mode, click
from the Compact Mode display.
